ASTM A36 steel plate is the most widely used hot-rolled steel product. As a kind of carbon structural steel product, its relative products are round rod steel, angle bar, and steel sections such as I-Beams, H-beams, angles, and channels. Hot rolled ASTM A36 has rough surface on the final product, it’s easy for further processing like machining.
Chemical Composition analyze:
ASTM A36 belongs to general low carbon steel, steel product with low carbon content less than 0.3%，it is considerably soft for easy forming, machining, welding. Heat treatment has less effect on ASTM A36 steel material. It contains some other elements including alloy element: manganese, sulfur, phosphorus and silicon. Iron and these elements together forms unique mechanical property of ASTM A36, unlike stainless steel with nickel and chromium element, it doesn’t show good corrosion resistance. If you need corrosion resistant property, having it painted with a layer of plating is a good choice.

Technical data

ASTM A36 Hot Rolled Steel Plate	Chemical Compostion
	Element	content
	Carbon, C	0.25 - 0.290 %
	Copper, Cu	0.20 %
	Iron, Fe	98.0 %
	Manganese, Mn	1.03 %
	Phosphorous, P	0.040 %
	Silicon, Si	0.280 %
	Sulfur, S	0.050 %

Physical Property Analyze:
Qualified A36 steel product shall have ultimate tensile strengths ranges from 58,000 to 79,800 psi. It is not a exact number for it is affected by its chemical composition and production method. In tensile testing, ASTM A36 steel bar can elongate to around 20% of its original length. It also shows excellent impact strength at room temperature.

Physical Property	Metric	Imperial
Density	7.85 g/cm3	0.284 lb/in3

Mechanical Property:

ASTM A36 Hot Rolled Steel Plate
Mechanical Properties	Metric	Imperial
Tensile Strength, Ultimate	400 - 550 MPa	58000 - 79800 psi
Tensile Strength, Yield	250 MPa	36300 psi
Elongation at Break (in 200 mm)	20.0 %	20.0 %
Elongation at Break (in 50 mm)	23.0 %	23.0 %
Modulus of Elasticity	200 GPa	29000 ksi
Bulk Modulus (typical for steel)	140 GPa	20300 ksi
Poissons Ratio	0.260	0.260
Shear Modulus	79.3 GPa	11500 ksi

CUSTOMER TRANSACTION

Always adhere to the tenet of high quality, low cost, fast pace and excellent service. Shandong Chengshun Metal Materials Co., Ltd. is willing to cooperate sincerely with friends from all walks of life at home and abroad for common development.

STORAGE VIDEO

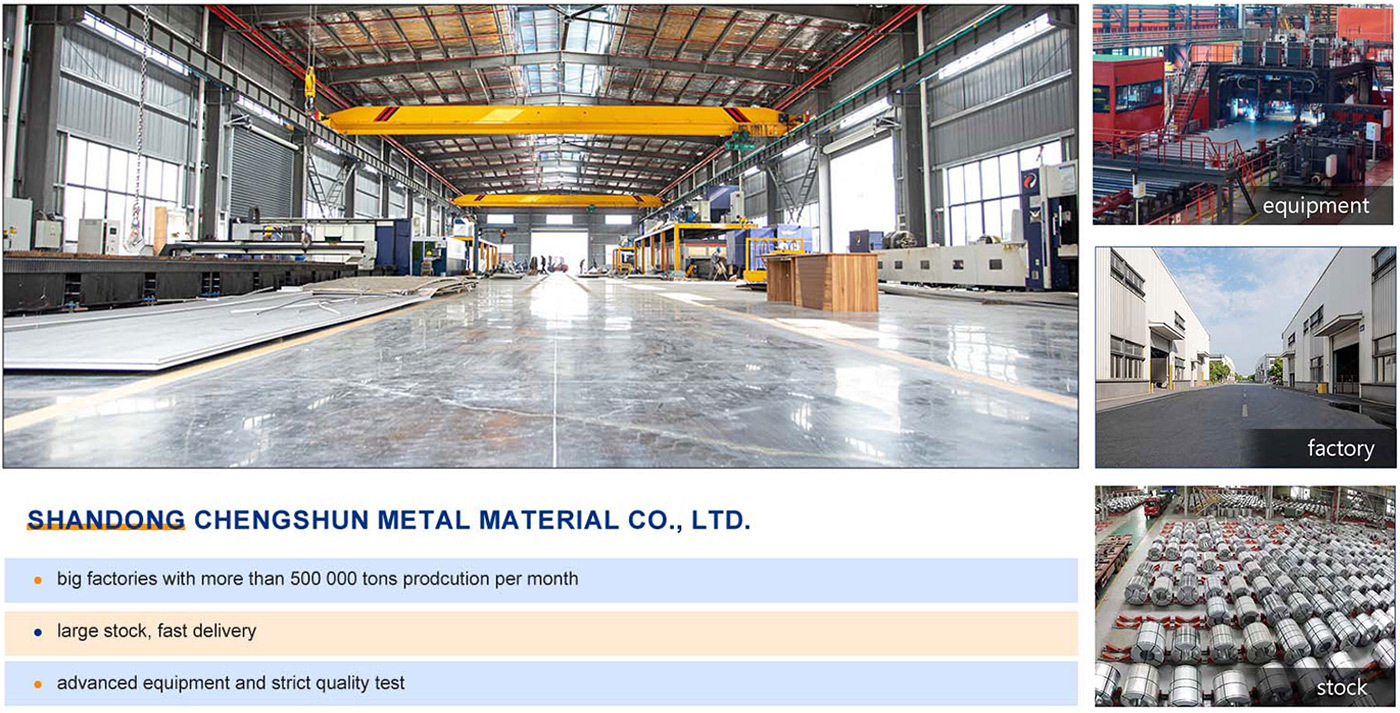

Factory Appearance

Shandong Chengshun Metal Materials Co., Ltd. is located in Jinan City, Shandong Province. It is a comprehensive company dealing in high-quality steel products, with a superior geographical location and very convenient transportation. The company has a complete and scientific quality system, and has been recognized by the industry for its integrity, strength and product quality.

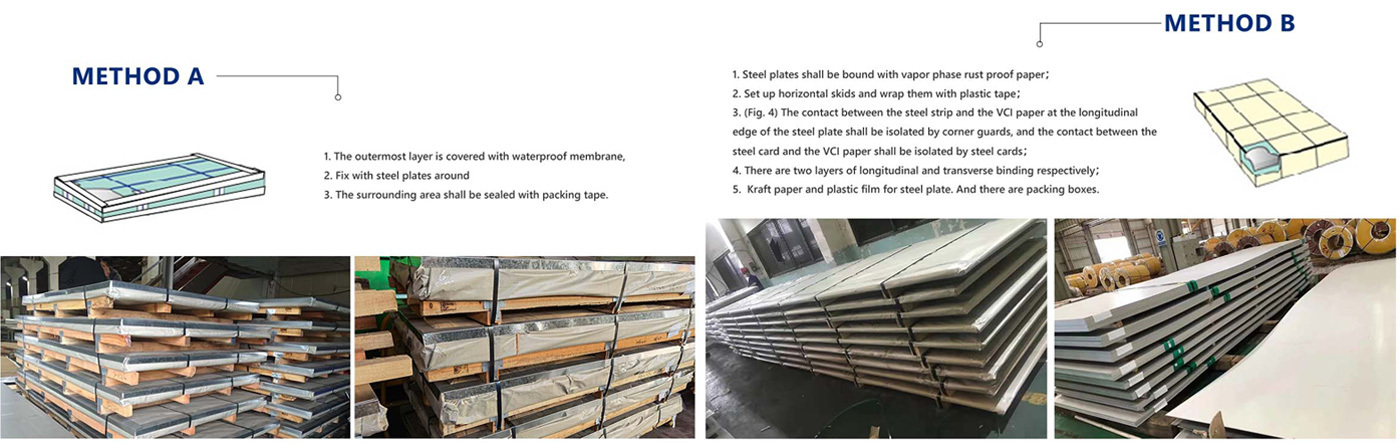

Packing and shipping

Mainly exported to Europe, Southeast Asia, South Africa, the Middle East, Latin America and other countries and regions, the products are favored by Chinese and foreign users.

CERTIFICATE OF HONOR

COOPERATIVE PARTNER

PRODUCTION WORKSHOP

Carbon Steel
